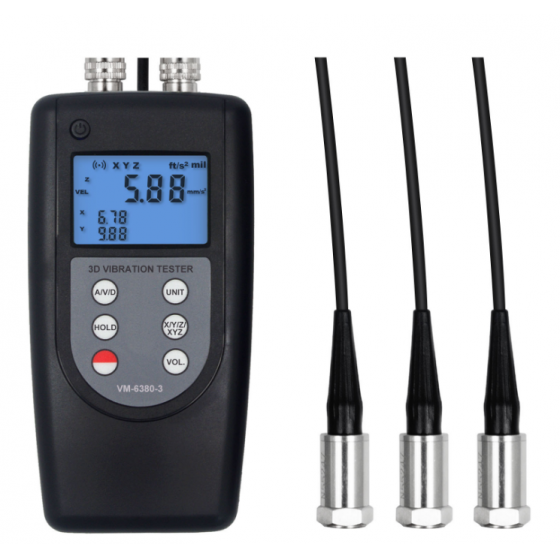

Vibration Meter

Product Details:

Place of Origin:	Made in china
Brand Name:	meter2u
Model Number:	VM-6380-3
Certification:	ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time:	7-15
Payment Terms:	T/T.WU,PAYPAL
Supply Ability:	10000 per month

Large Image:Vibration MeterVibration Meter

Detailed Product Description

Features
* 3 same parameters in one display for 3 position measurement or 1 position measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
*Bearing condition monitoring function.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

Sensor	3 Piezoelectric Transducers
Measuring Range	Acceleration	0.1~400m/s² 0.3~1312ft/s² 0.0~40g Equivalent Peak
	Velocity	0.01~400mm/s 0.004~16.0inch/sTrue RMS
	Displacement	0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak
Frequency Range	Acceleration	10Hz~10kHz
	Velocity	10Hz~1kHz
	Displacement	10Hz~1kHz
Accuracy	5% of Reading+2 digits
Operating Conditions	Temperature0~50ºC Humidity <90%RH
Power Supply	4x1.5V AAA(UM-4)Battery
Dimensions	140x73x35mm
Weight	415g(Not Including Batteries)
Standard Accessories	Main Unit ,Piezoelectric Transducers,Powerful Rare Earth Magnet Probe(Cone)&Probe(Spherical),Carrying Case(B04),Manual Book
Optional Accessories	Headset
	RS-232C Data Cable with Software
	Bluetooth Data Adapter with Software
