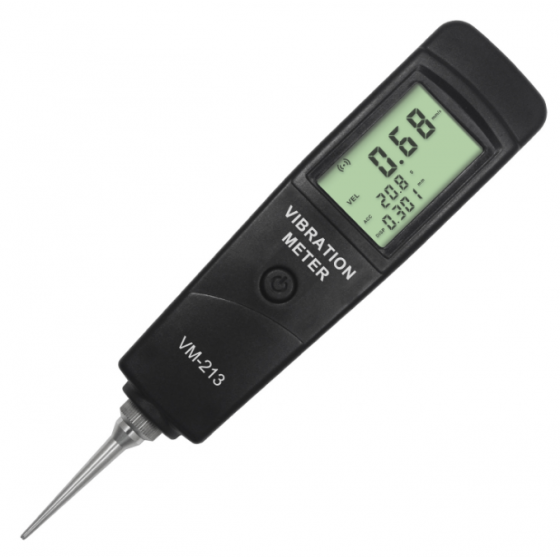

Vibration Pen

Product Details:

Place of Origin:	Made in china
Brand Name:	meter2u
Model Number:	VM-213
Certification:	ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time:	7-15
Payment Terms:	T/T.WU,PAYPAL
Supply Ability:	10000 per month

Large Image:Vibration MeterVibration Pen

Detailed Product Description

Features
* Can display the parameters of Displacement, Velocity and Acceleration simultaneously.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* With Max Hold function. * Wide frequency range (10Hz~10kHz) in acceleration mode.
* Bearing condition monitoring function.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

Sensor	Piezoelectric Transducer
Measuring Range	Acceleration	0.1~300m/s² Equivalent Peak 985ft/s²
	Velocity	0.01~300mm/s True RMS 0.000~13.0inch/s
	Displacement	0.001~3.000 mm 0.04~120.0 mil Equivalent Peak-peak
Frequency Range	Acceleration	10Hz~10kHz
	Velocity	10Hz~1kHz
	Displacement	10Hz~1kHz
Accuracy	10% of Reading+2 digits
Metric/Imperial Conversion	√
Max.Value Hold	√
Power Off	Manual Power Off or Auto Power Off
Data Output	USB,RS-232
Operating Conditions	Temp:0~50ºC Humidity:<90%RH
Power Supply	Lithium Battery
Dimensions	202x43x23 mm(8.0x1.7x0.9 inch)
Weight	130g(Including Batteries)
