Vibration Meter

Vibration Meter

Product Details:

Place of Origin: Made in china
Brand Name: meter2u
Model Number: VM-6360
Certification: ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time: 7-15
Payment Terms: T/T.WU,PAYPAL
Supply Ability: 10000 per month

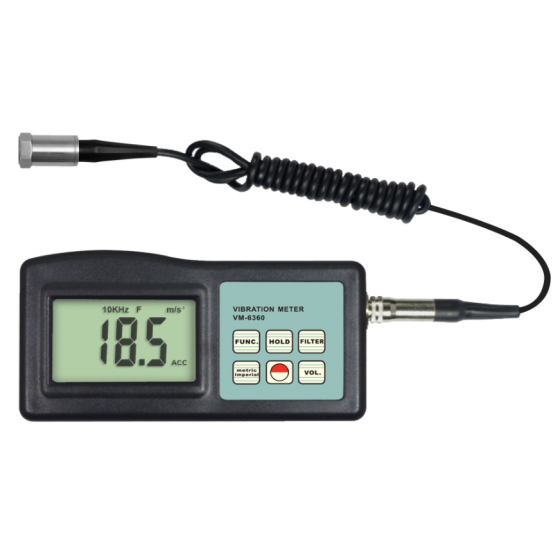

Large Image:Vibration MeterVibration Meter

Detailed Product Description

Features
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

Sensor

Piezoelectric Transducers

Measuring Range

Acceleration

0.1~400m/s²Equivalent Park

Velocity

0.01~400mm/s True RMS

Displacement

0.001~4.0mm Equivalent Peak-peak

Frequency Range

Acceleration

10Hz~10kHz

Velocity

10Hz~1kHz

Displacement

10Hz~1kHz

Accuracy

5% of Reading+2 digits

Operating Conditions

Temperature0~50ºC   Humidity <90%RH

Power Supply

4x1.5V AAA(UM-4)Battery

Dimensions

124x62x30mm

Weight

120g(Not Including Batteries)

Standard Accessories

Main Unit, Piezoelectric Transducers, Powerful Rare Earth Magnet

Probe(Cone)&Probe(Spherical), Carrying Case(B04),Manual Book

Optional Accessories

Headset

RS-232C Data Cable with Software

Bluetooth Data Adapter with Software
