Vibration Calibrator

Product Details:

Place of Origin:	Made in china
Brand Name:	meter2u
Model Number:	VMC-606
Certification:	ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time:	7-15
Payment Terms:	T/T.WU,PAYPAL
Supply Ability:	10000 per month

Large Image:Vibration MeterVibration Calibrator

Detailed Product Description

Features

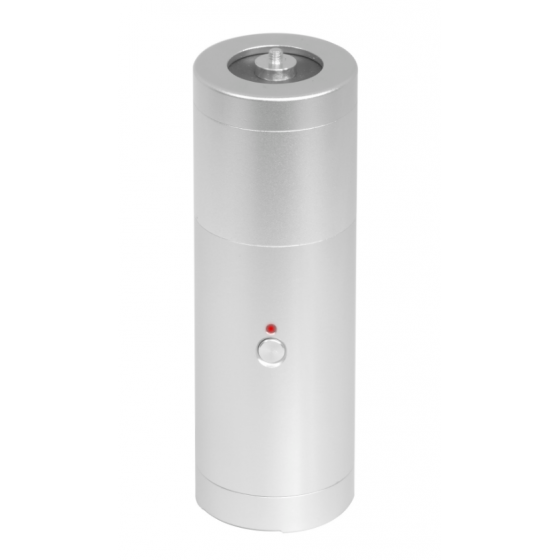

The Vibration Calibrator is a small, self-contained handheld shaker designed for quick and easy checking of accelerometers, vibration monitoring systems and recording systems. Providing a known and controlled RMS vibration for verification of accelerometers weighing up to 150g.

*Operates at 159.2 Hz.
*10 mm/s RMS velocity output.
*Drives vibration sensors up to 150g.
*CE compliant.
Specification:

Operating Frequency	159.2Hz±0.5%
Acceleration Output	14.14m/s²(Peak)±3%
Velocity Outout	10mm/s(RMS)±3%
Displacement Output	28um(Peak-Peak)±4%
Transverse Output	<5%
Distortion	<3%
Maximum Losd	150 g
Ramp-Up Time	< 3 Seconds
Operating Conditions	Temp: -10~40°C Humidity: <85%RH
Battery Supply	4x1.5V AA (UM-3) battery
Size (Diamter x Height)	56 mm x 200 mm
Weight (with batteries)	960g
