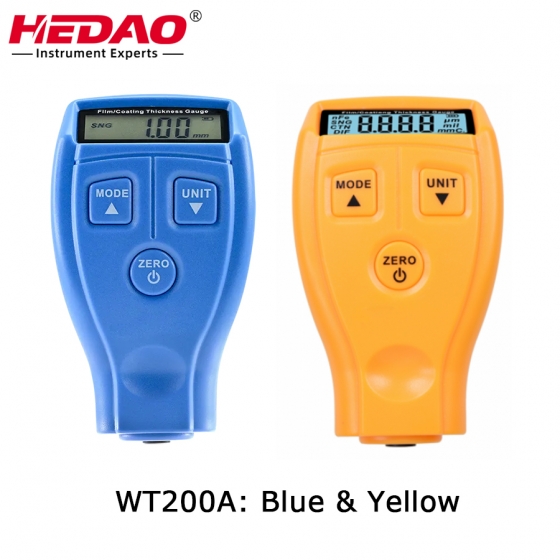

Paint Thickness Gauge Car Coating Thickness Meter for Used Car Buyers

Product Details:

Place of Origin:	Made in china
Brand Name:	HEDAO
Model Number:	WT200A
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time:
Payment Terms:
Supply Ability:

Large Image:Film Coating thickness gaugePaint Thickness Gauge Car Coating Thickness Meter for Used Car Buyers

Detailed Product Description

This product is a portable coating thickness gauge, which can quickly, nondestructively, and accurately measure non-metallic coating thickness (such as paint,fim, etc.) of metal substrate. It Is widely used in detection areas like manufacturing industry Car washing industry, metal processing industry, chemical industry,and commodity inspection.

Function
			WT200A	WT210	WT211
Thickness measurement of non-metallic coating on the surface of magnetic metal substrate			√	×	×
Thickness measurement of non-magnetic surface coatings on magnetic metal substrates			√	×	√
Measuring the non-magnetic film on the magnetic metal substrate			×	√	√
Automatically identifying the non-magnetic metal substrate or magnetic metal substrate			×	x	√
Single measurement, continuous measurement and differential measurement available			√	√	√
Zero-point calibration,2-point calibration and basic calibration available			√	√	√
Metric and imperial units of measurement optional			√	√	√
LCD backlight			×	√	√
Automatic shutdown			√	√	√
Two modes(Car/User)			√	x	×

Specification
	WT200A	WT210		WT211
Measurement ranges	0~1.80mm/0~71.0 mil	0~1800μm/0~70.9 mil		0~1500μm/0~59 mil/0~1.5mm
Resolution	0.05mm/2mil(Car) 0.01mm/1mil(User)	0.1pm/1μm/0.1mil		(0.1μm,1μm)/0.1 mil/0.001mm
Measurement error	±0.1mm	±(3%H+1μm)		≤150μm ±5pm
				>150μm±(3%H+1pm)
Min. diameter of substrate	50mm	φ12mm		12mm(Magnetic)
				50mm(Non-magnetic)
Min. thickness of substrate	0.5mm	0.5mm		0.5mm(Magnetic)
				50mm(Non-magnetic)
Operating temperature range	18~30℃	0~40℃		0~40℃
Work humidity range	10~80%RH	10~95%RH		10~95%RH
Power supply
