Coating Thickness Gauge

Product Details:

Place of Origin:	Made in china
Brand Name:	meter2u
Model Number:	CM-1210-200F / 200N
Certification:	ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time:	7-15
Payment Terms:	T/T.WU,PAYPAL
Supply Ability:	10000 per month

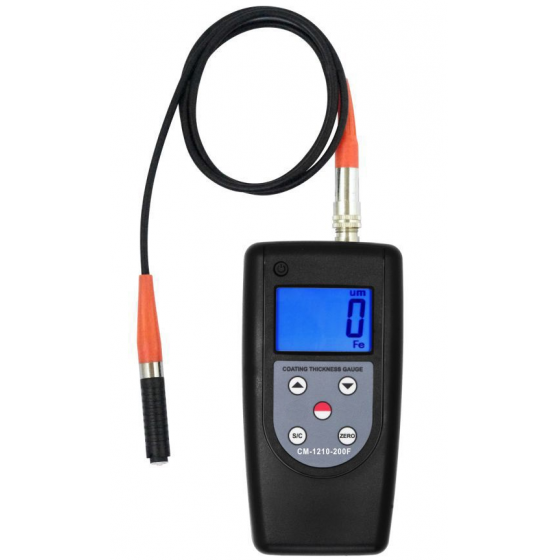

Large Image:Film Coating thickness gaugeCoating Thickness Gauge

Detailed Product Description

Features
* Specially for the thickness measurement of coating on small workpiece.
* Measuring method: magnetic induction (F)
* Two measurement mode: Single and Continuous（Notice：Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.）
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Specification:

Model	CM-1210-200F	CM-1210-200N
Principle	F Magnetic Induction	NF Type Eddy Current
Range	0 ~ 200 µm / 0 ~ 8 mil
Resolution	0.1 µm / 1 µm
Accuracy	±1 ~ 3%n or ±2.5 µm or 0.1 mil
Min.Radius Workpiece	Convex 2 mm / Concave 4 mm
Min.Sample Thickness	0.1 mm
Metric / Imperial	√
Functions	Battery Indicator & Automatic Power Off
Opeating Conditions	Temperature : 0 ~ 40°C
	Humidity : 10 ~ 90% RH
Power Supply	4 x 1.5V AAA (UM-4) Battery
Dimensions	140 x 72 x 34 mm
Weight	215 g (Not Including Batteries)
