Coating Thickness Gauge

Product Details:

Place of Origin:	Made in china
Brand Name:	meter2u
Model Number:	CM-8821
Certification:	ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time:	7-15
Payment Terms:	T/T.WU,PAYPAL
Supply Ability:	10000 per month

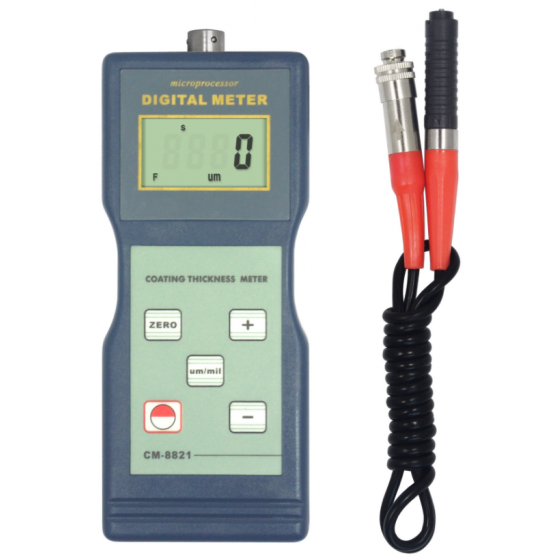

Large Image:Film Coating thickness gaugeCoating Thickness Gauge

Detailed Product Description

Features
* Measuring Principle: magnetic induction (F).
* Two measurement mode: Single and Continuous（Notice：Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.）
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
Specification:

Principle	F Magnetic Induction
Range	0~1000µm/0~40mil
Resolution	0.1µm/1µm
Accuracy	±1~3%n or ±2.5µm
Min.Radius Workpiece	F Type:convex 1.5mm/concave 25mm
Min.Radius Workpiece	NF Type:convex 3mm/concave 50mm
Min.Measuring Area	6mm
Min.Sample Thickness	0.3mm
Metric/Imperial	Convertible
Battery Indicator	Low Battery Indicator
Automatic Power Off	√
Operating Conditions	Temperature:0~50ºC
Operating Conditions	Humidity:<80%RH
Power Supply	4x1.5V AA (UM-3)Battery
Dimensions	161x69x32mm
Weight	210g(Not Including Batteries)
