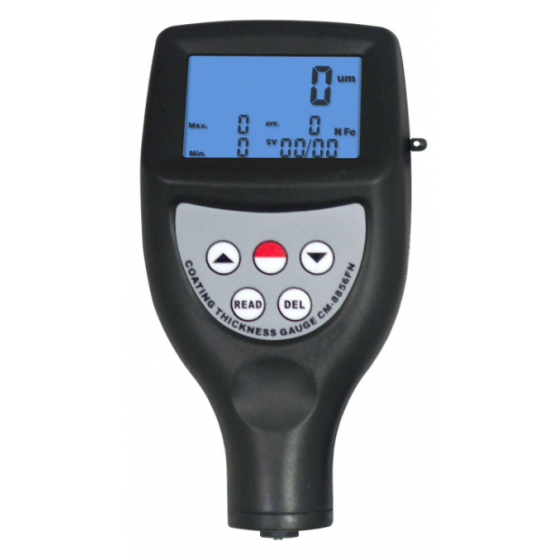

Coating Thickness Gauge

Coating Thickness Gauge

Product Details:

Place of Origin: Made in china
Brand Name: meter2u
Model Number: CM-8855
Certification: ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time: 7-15
Payment Terms: T/T.WU,PAYPAL
Supply Ability: 10000 per month

Large Image:Film Coating thickness gaugeCoating Thickness Gauge

Detailed Product Description

Features
* Can store the new data in 99 groups.
* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient   to measure the coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
* Integral Type suitable for single-hand operation, large probe with large contact surface   have better stability, users can get continuous, good repetitive and precise measurements.
Specification:

Principle

F Magnetic Induction&NF Type Eddy Current

Range

0~1250µm/0~50mil

Resolution

0.1µm/1µm

Accuracy

±1~3%nor±2.5µm

Min.Radius Workpiece

F Type:convex 1.5mm/concave 25mm

NF Type:convex 3mm/concave 50mm

Min.Measuring Area

6mm

Min.Sample Thickness

0.3mm

Data Memory

99 Groups

Metric/Imperial

Battery Indicator

Automatic Power Off

Operating Conditions

Tempersture0~40ºC    Humidity10~90%RH

Power Supply

2x1.5V AAA(UM-4)Battery

Dimensions

126x65x35mm

Weight(Not Including Batteries)

81g
