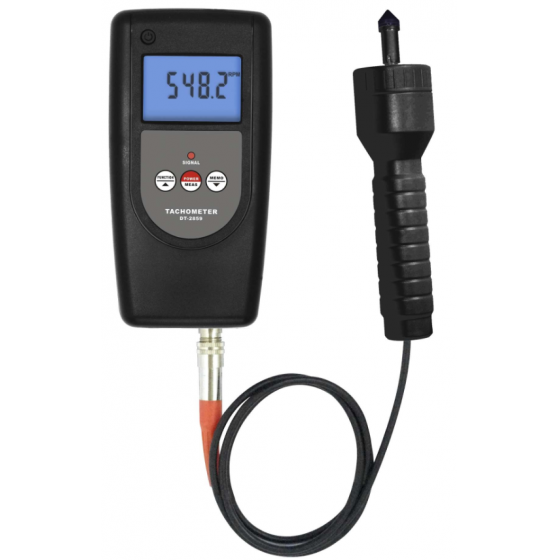

Tachometer

Product Details:

Place of Origin:	Made in china
Brand Name:	meter2u
Model Number:	DT-2859
Certification:	ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time:	7-15
Payment Terms:	T/T.WU,PAYPAL
Supply Ability:	10000 per month

Large Image:TachometerTachometer

Detailed Product Description

Features
* Multifunctional, one instrument combines PHOTO TACH.(RPM) & CONTACT TACH. (RPM , m / min, ft / min ). It can also be applied to the measurement of Frequency, Cycle, Pulse Times, Pulse Distance, User-defined Pulse Distance, etc.
* Digital display with no guessing errors.
* Wide measuring range and high resolution.
* The last value / max. value / min. value will be automatically stored in memory.
* The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures elegant shape and ease of use.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.

Measuring Range	Laser	2.5~99,999 r/min
	Contact	0.5~19,999 r/min
	Surface	0.05~1999.9 m/min
	Speed	0.2~6560 ft/min
	Frequency	0.04~1666.65 Hz
Resolution	Rotative	0.1 r/min (0.5~999.9 r/min)
	Velocity	1 r/min (Over 100 m/min)
	Surface	0.01 m/min (0.05~99.9 m/min)
	Speed	1 m/min (Over 1000 r/min) 0.1 ft/min (0.1~999.9 ft/min) 1 ft/min (Over 1000 ft/min)
Accuracy	±(0.05%n+1d)
Sampling Time	1.0s(Over 60 r/min)
Test Range Select	Automation
Memory	Max Value /Min Value /Last Value
Time Base	Quartz Crystal
Laser Tach	50~250 mm/2~10 inch(Typical)
Detecting Distance	Max 600 mm/24 inch
Power Consumption	80 mA (Testing)
Operating Temperature	0~50ºC(32~122ºF)
