Tachometer

Product Details:

Place of Origin:	Made in china
Brand Name:	meter2u
Model Number:	DT-2236
Certification:	ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time:	7-15
Payment Terms:	T/T.WU,PAYPAL
Supply Ability:	10000 per month

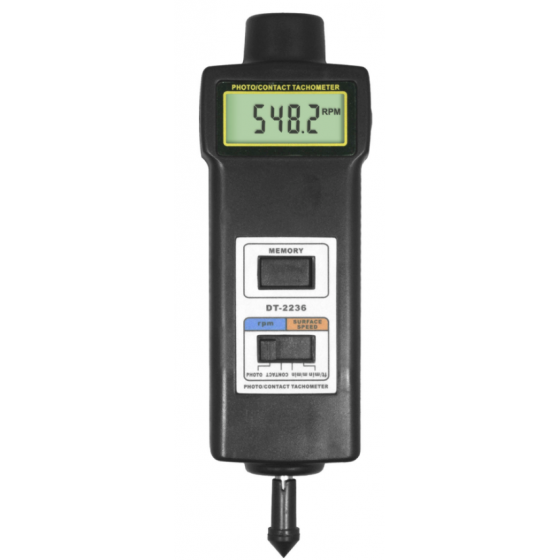

Large Image:TachometerTachometer

Detailed Product Description

Features
* Multifunctional, one instrument combines PHOTO TACH.(RPM) & CONTACT TACH. (RPM , m / min, ft / min ).
* Digital display with no guessing errors.
* Wide measuring range and high resolution.
* The last value / max. value / min. value will be automatically stored in memory.
* The use of durable, long-lasting components, including a strong, light weight
ABS-plastic housing assures elegant shape and ease of use.

Model		DT-2236	DT-2858	DT-2857	DT-2856
		DT2236L(Laser Type)
Range	Laser	2.5~99,999r/min
	Contact	0.5~19,999r/min		-------	0.5~19,999r/min
	Surface Speed	0.05~1999.9 m/min		-------	-------
		0.2~6560 ft/min		-------	-------
Resolution	Tachometer	0.1 r/min(0.5~999.9 r/min) 1 r/min(Over 1000 r/min)
	Surface	0.01 m/min(0.05~99.9 m/min)
	Speed	1 m/min(Over 100 m/min),0.1 ft/min(0.1~999.9 ft/min),1 ft/min(Over 1000 ft/min)
Accuracy		±(0.05%n+1d)
Sampling Time		1.0 s(Over 60 r/min)
Test Range Select		Automation
Memory		Max / Min / Last Value
Time Base		Quartz Crystal
Laser Tach Detecting Distance		50~150mm/2~6inch(Typical),Max,300mm/12inch		50~250mm/2~10inch(Typical),Max600mm/14 inch	50~150mm/2~6inch(Typical),Max300mm/12inch
Power Supply		80mA(Testing)
Dimensions		0~50ºC
Weight		4x1.5V AA Size(UM-3)Battery
Standard Accessories		215x64x38mm	215x74x32mm	145x74x32mm	215x74x32mm
		300g	280g	260g	280g
