Surface Roughness Tester

Surface Roughness Tester

Product Details:

Place of Origin: Made in china
Brand Name: meter2u
Model Number: SRT-6210S
Certification: ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time: 7-15
Payment Terms: T/T.WU,PAYPAL
Supply Ability: 10000 per month

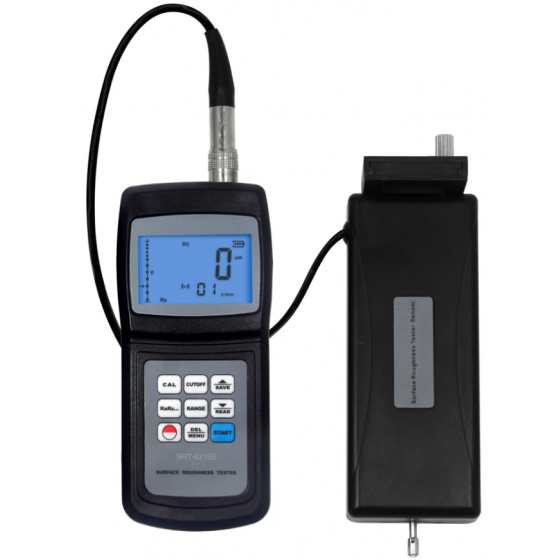

Large Image:Roughness TesterSurface Roughness Tester

Detailed Product Description

Features
* Be compatible with four standards of ISO, DIN, ANSI and JIS.
* Multiple parameter measurement: Ra, Rz, Rq, Rt.
* Highly sophisticated inductance sensor.
* Four wave filtering methods : RC, PC-RC, GAUSS and D-P.
* Small in size, light in weight and easy to use.
* Manual or automatic shut down.
* Can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
* Metric /Imperial Conversion.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

Standards

GB/T6062,ISO4287,DIN4768,JIS B,ANSI46.1

Parameters

Ra,Rq,Rz,Rt

Measuring Range

Ra,Rq:0.005~16.00µm Rz,Rt:0.020~160.0µm

      /0.020~629.9µinch       /0.078~6299µinch

Accuracy

<<±10%

Fluctuation of Display Value

<<6%

Resolution

0.001/0.01/0.1

Sensor

Radius of Probe Pin     5µm

Material of Probe Pin    Diamond

Measurement Force of Probe   4mN(0.4gf)

Probe Angle    90º

Vertical Radius of Guiding Head    48 mm

Maximum Driving Stroke   17.5mm/0.7inch

Cutoff length(l)   0.25mm,0.8mm,2.5mm

Driving Speed

Sampling

When Length=0.25mm,Vt=0.135 mm/s

When Length=0.8mm,Vt=0.5mm/s

When Length=2.5mm,Vt=1mm/s

Returning

Vt=1mm/s

Profile Digital Filter

RC,PC-RC,GAUSS,D-P

Evaluation Length

1~5L Optional

Operating Conditions

Temp:0~50ºC   Humidity:<80%RH

Data Memorize

7 Groups

Power Supply

4x1.5V AAA(UM-4)Battery

Size :Main Unit Size:149x67x29mm ,  Measuring Base Size:185x56x47mm

Weight

485g
