Surface Roughness Tester

Product Details:

Place of Origin:	Made in china
Brand Name:	meter2u
Model Number:	SRT-6200S
Certification:	ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time:	7-15
Payment Terms:	T/T.WU,PAYPAL
Supply Ability:	10000 per month

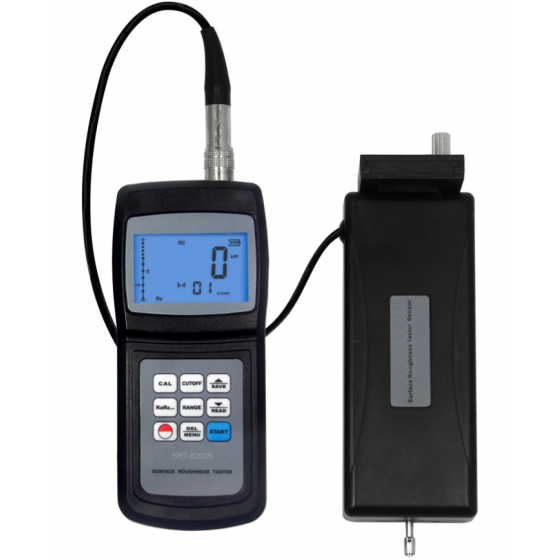

Large Image:Roughness TesterSurface Roughness Tester

Detailed Product Description

Features
* Be compatible with four standards of ISO, DIN, ANSI and JIS.
* Multiple parameter measurement: Ra, Rz, Rq, Rt.
* Highly sophisticated inductance sensor.
* Four wave filtering methods : RC , PC-RC, GAUSS and D-P.
* Small in size, light in weight and easy to use.
* Manual or automatic shut down.
* Metric /Imperial Conversion.
* Can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

Standards	GB/T6062,ISO4287,DIN4768,JIS B,ANSI46.1
Parameters	Ra,Rq,Rz,Rt
Measuring Range	Ra:0.05~10.00µm Rz:0.020~100.0µm /1.000~400.0µinch /0.780~4000µinch
Accuracy	<<±10%
Fluctuation of Display Value	<<6%
Resolution	0.001/0.01/0.1
Sensor	Radius of Probe Pin 10µm
	Material of Probe Pin Diamond
	Measurement Force of Probe 16mN(1.6gf)
	Probe Angle 90º
	Vertical Radius of Guiding Head 48 mm
	Maximum Driving Stroke 17.5mm/0.7inch
	Cutoff length(l) 0.25mm,0.8mm,2.5mm
Driving Speed	Sampling When Length=0.25mm,Vt=0.135 mm/s When Length=0.8mm,Vt=0.5mm/s When Length=2.5mm,Vt=1mm/s
	Returning	Vt=1mm/s
Profile Digital Filter	RC,PC-RC,GAUSS,D-P
Evaluation Length	1~5L Optional
Operating Conditions	Temp:0~50ºC Humidity:<80%RH
Power Supply	4x1.5V AAA(UM-4)Battery
Size:Main Unit Size::149x67x29mm ,Measuring Base Size:185x56x47mm
Weight	485g
