Shore Hardness Tester

Product Details:

Place of Origin:	Made in china
Brand Name:	meter2u
Model Number:	HT-6510（A.B.C.D.O.OO.DO)
Certification:	ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time:	7-15
Payment Terms:	T/T.WU,PAYPAL
Supply Ability:	10000 per month

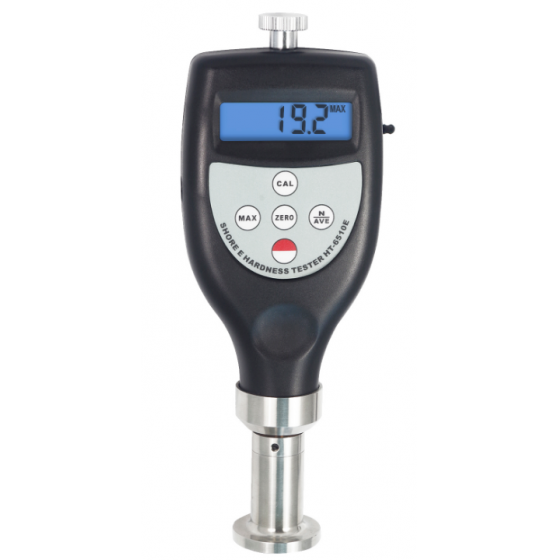

Large Image:Hardness TesterShore Hardness Tester

Detailed Product Description

Features
Used to determine the indentation hardness of materials ranging from cellular products to rigid plastics. It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
* With average calculate function.
* Peak value deposit function.
* Under-voltage alarm function.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
Parameters Displayed ：Hardness Result, Average Value, Max. Value
Measurement Range ：10~90 H
Measurement Deviation：＜1 H
Resolution：0.1 H
Auto Switch Off
Battery Indicator：Low Battery Indicator
Operating Conditions：Temperature: 0 ~ 40 ℃ Humidity: 10 ~ 90 %RH
Power Supply ：2 x 1.5 V AAA Size (UM-4) Battery
Dimensions：162 x 65 x 28 mm
Weight：170 g（Not Including Batteries）

Model	Indenter	Tested Materials	Hardness Value
A	0.79 Truncated (Frustum) Cone	Soft Rubber, Elastomers, Natural Rubber Products, Neoprene, Resin, Polyester, Soft PVC,Lleather, etc.	20 ~ 90 A
B	R 0.1 Cone	Middle Hard Rubber Materials, Typewriter Rollers, etc.	Above 90 A, Below 20 D
C	0.79 Truncated (Frustum) Cone	Plastics and Middle Hard Rubber Materials	Above 90 B, Below 20 D
D	R 0.1 Cone	Fibre Plastics, Hard Rubber, Hard Plastic Materials, Plexiglas,Stiff Thermo Plastics, Formica, Print Roller, Vinyl-plate, Cellulose Acetate, etc.	Above 90 A
DO	R 1.2 Spherical Radius	Plastics and Middle Hard up to Hard Rubber Materials	Above 90 C, Below 20 D
O	R 1.2 Spherical Radius	Soft Elastic Materials, Print Rollers, Middle Firm Textile Fabrics, Nylon, Orlon, Perlon, Rayon	Below 20 DO
OO	R 1.2 Spherical Radius	Sponge- and Cellular Rubber, Foam Rubber, Silicone, Gel-like Materials	Below 20 O
E	R 2.5 Spherical Radius	Hard Sponge, EVA	Above 90 DO, Below 20 D
