Pencil Hardness Tester

Product Details:

Place of Origin:	Made in china
Brand Name:	meter2u
Model Number:	HT-6510P
Certification:	ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time:	7-15
Payment Terms:	T/T.WU,PAYPAL
Supply Ability:	10000 per month

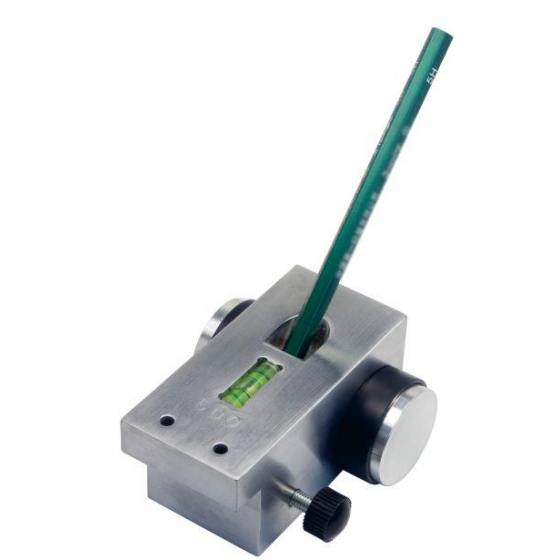

Large Image:Hardness TesterPencil Hardness Tester

Detailed Product Description

Features
The instrument applies mechanical measurement.Keep three point touch the coating(two wheel,a pencil core),and a 45 degree angle between pencil and test surface.Push the instrument sliding,pencil draws the corresponding track in the coating.In the change of different pencil marks,the hardness value of the film can be determined.
Standards
《GB/T 6739-96》Coating Hardness Pencil Test Method
《ASTM D3363-00》Standard Test Method for Determination of Coating Hardness by Pencil Test Method
《GB/T 1727-92》General Method for Preparing Film

Structure Description
1 - Horizontal Mark
2 - Pencil
3 - Wheel
4 - Coating
5 - Base Material
6 - Weights
7 - Screw
8 - Moving Direction
9 - Pencil Core

Load Weight	1000g / 750g / 500g
Measurement Angle	45°
Three Touch Points	Two Wheels,a Pencil Core
Scratch Speed	About 1 mm/s
Standard Configuration	Pencil Hardness Tester
	1000g Weight
	750g Weight
	13 Pencils（6B-6H）
	Eraser
	Knife
	Horizontal Pad Block
	Sandpaper
