Online Conductivity controller

Online Conductivity controller

Product Details:

Place of Origin: Made in china
Brand Name: meter2u
Model Number: EC-100/200
Certification: ISO9000

Payment & Shipping Terms:

Minimum Order Quantity: 25
Price: 8-15
Delivery Time: 7-15
Payment Terms: T/T.WU,PAYPAL
Supply Ability: 10000 per month

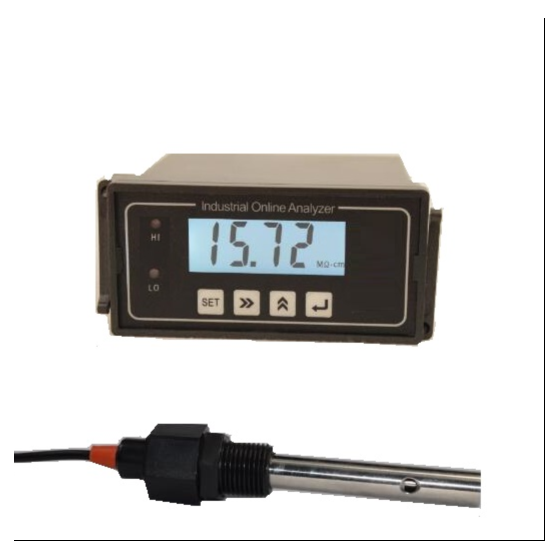

Large Image: TDS MeterOnline Conductivity controller

Detailed Product Description

Product description:
Measuring range: 0~2000uS/cm, 0~20mS, 0~200mS
Displaying mode: LCD
Accuracy: 1.5%(FS)
Stability:±2×10-3(FS)/24h
Working pressure: 0~0.5MPa
Medium’s temperature:0~50℃
Temperature compensation:
Taking 25℃ as the datum point, digital temp. compensation.
 Output Current/ Votage:
 insulated active output 4-20mA (≤ 500Ω)
Control output: maximum and minimum (constantly open)
contact point output.
Capacity of contact points: 3A/AC250V (with resistant loads)
Provided electrodes:
1.0cm-1 electrodes (0.1cm-1 constant optional)
Length of the cable: 4.5m or otherwise agreed      m
Environmental conditions: temperature: 0~50℃;
Humidity: ≤85%RH
Power supply:  AC 220V±10% 50/60Hz
                             AC 110V±10% 50/60Hz
External dimensions: 48×96×100mm (height×width×depth)
The hole on the dial plate: 45×91mm
The way of installation: install with a disk
