Product description:

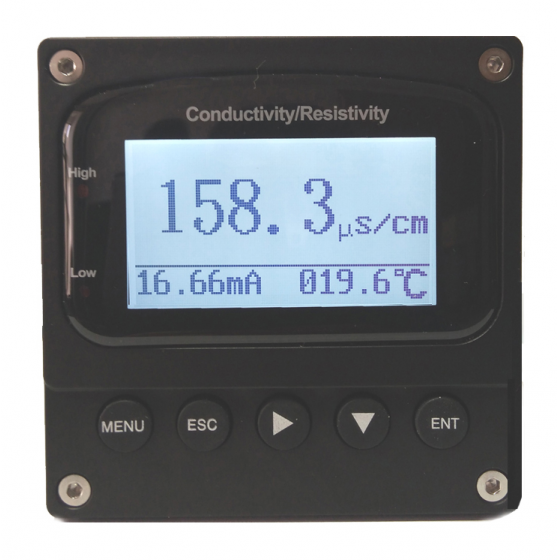

The intelligent online monitoring control instrument, conductivity, resistivity.
Full range of different constant of sensor.
Digital temperature compensation, wide range of temperature input.
Controller protection grade: IP65
Programmable relay control output.
Original parameter recovery function
A variety of output current, control, 485 communication, to meet different application users’ requirements
Compatible with instruments and sensors imported from abroad, can be interchanged with each other
Widely used in electronic, chemical, pharmaceutical, mechanical and electrical, drinking water and other industries, water production equipment, raw water and water production online conductivity / resistivity measurement and control
|
Model
|
EC-6850
|
|
Measure range
|
Conductivity : 0.0～20000μS/cm；0.0～200mS/cm；TDS : 0.0～10000ppm；Resistivity ：0～18.25MΩ·cm； 0-18250KΩ·cm
|
|
Accuracy
|
1.5%(FS)
|
|
Temperature compensation
|
temperature compensation is based on 25 centigrade
|
|
Medium temperature
|
Conductivity/TDS:-25℃～+125℃；Resistivity ：0～100℃
|
|
Mating electrode
|
Optional different kinds of electrode
|
|
Display mode
|
Backlit LCD display with adjustable brightness，128*64 digit LCD
|
|
Current output
|
Photoelectric isolation 4～20mA
|
|
Control output
|
Programmable, normally open ,high limit, low limit relay
|
|
Communication output
|
RS485 communication, baud rate: 2400, 4800, 9600, 19200
|
|
Power
|
AC-220V or AC-110V
|
|
Working temperature
|
Environment range: 0～50℃ relative humidity: ≤85%
|
|
Overall size
|
96×96×130mm（H×W×D）
|
|
Hole size
|
93×93mm
|
|
Installation method
|
panel-mounted (embedded)
|
