Wine refractometer

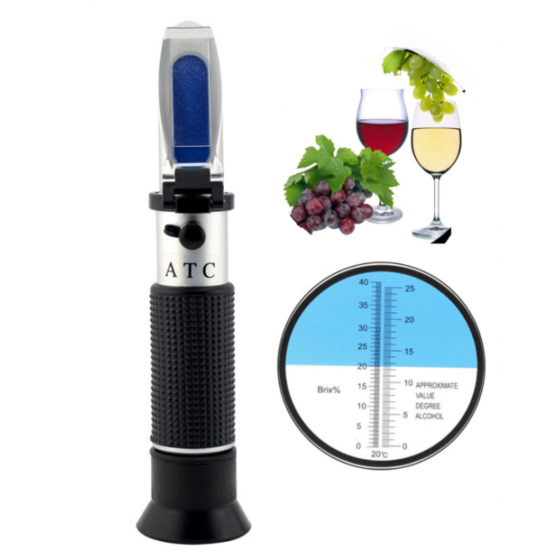

Alcohol & Grape Refractometer
This series are developed for working with alcohol or sugar related wines and concentration of alcohol. It can measure the alcohol concentration in wines or water solution. And it also is developed for measuring the sugar in the grapes, that helps the manufacturer to decide the best time to manufacture the grape wine. The RHW-25/Brix(ATC) are also used to check the concentration of Brix.
RHW-80VATC: It's for "samogon" - homemade vodka, whiskey, grappa etc :), Not only for finished wine. Also it is for "raw" alcohol after the first distillation and for in-process control.

RHW-80VATC: It's for "samogon" - homemade vodka, whiskey, grappa etc :), Not only for finished wine. Also it is for "raw" alcohol after the first distillation and for in-process control.

Specifications:

HEDAO Alcohol & Grape Refractometer
Model	Measurement Range	Min. Div.	Accuracy	Marke
RHW-25ATC	0-25%Vol	0.2%Vol	±0.20%	ATC
RHW-25BrixATC	0-25%Vol 0-40%Brix	0.2%Vol 0.2%Brix	±0.2%Vol ±0.2%Brix	ATC
RHW-25BeATC	0  -25%Vol 0-20 Beº	0.2%Vol 0.2%Be	±0.2%Vol   ±0.2%Brix	A TC
RHW-25VATC	0-25%Vol 0-22 Beº 0-40%Brix	0-20%Vol       0-20Beº 0.20%Brix	±0.2%Vol ±0.2%Brix           ±0.2%Brix	ATC
RHW-25OEATC	0 - 25 vol%;    0-170°OE	0.2% vol 1°Oe	±0.2% vol ±1°Oe	ATC
RHW-150OeATC	Brix: 0-35% °Oechsle (Oe): 0-150° °KMW (Babo): 0-30° °CNM: 10-37° VOL: 5-22%	Brix: ±0.5%  (Oe): ±1° °KMW (Babo): ±0.5° °CNM: 0.5° VOL: 0.2%	Brix: ±0.5%  (Oe): ±1° °KMW (Babo): ±0.5° °CNM: 0.5° VOL: 0.2%	ATC
RHW-80WATC        Weight Ratio	0～60%；60～80%；W/W	1%，2.5%	1%，2.5%	ATC
RHW-80VATC         Volume Ratio	0～60%；60～80%；V/V	1%，2%	1%，2%	ATC
