Whiteness Meter

Whiteness Meter

Product Details:

Place of Origin: Made in china
Brand Name: meter2u
Model Number: WM-106
Certification: ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time: 7-15
Payment Terms: T/T.WU,PAYPAL
Supply Ability: 10000 per month

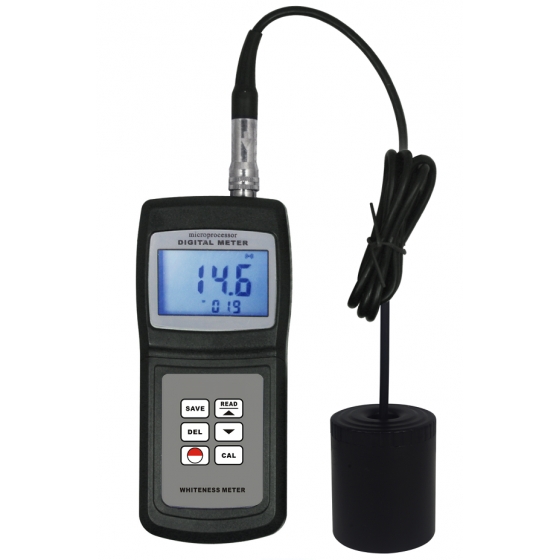

Large Image:Whiteness MeterWhiteness Meter

Detailed Product Description

Features
It consists of Light Source, Optical System, Detection System, Data Process and Display System.
The whiteness Calculation Formula of the instrument is blue light whiteness R457.
Use of high quality imported components, good reliability.
The optical path design is reasonable, simple.
Adopt filter system with correction, the whiteness can be reflected quantitatively.
No preheating after starting, measurements can be taken after simple calibration, easy to operate. Pass strict inspection and testing, the instrument conforms to the JJG 512-2002 Whiteness Meter Verification Regulation.
Also conforms to GB3978, GB3979, GB7973, GB7974, ISO2470, GB8904.2, QB1840, GB2913, GB13025.2, GB1543, ISO2471, GB10339, GB5950, GB12911, GB2409 and other standards.
Able to memory 254 groups of measurement data.
Use USB data out put and RS- 232 data out put to connect with PC.
Provide Bluetooth data out put choice.
Range 0~120
Resolution 0.1
Illumination Condition 45/0
Illuminant LED 457nm
Whiteness Formula Blue Light Whiteness WB=R457
Measuring Aperture <<15 mm
Zero Drift <<0.1
Stability of Display <<0.5
Repeatability of Measurement <<0.1
Operating Gondition Temperature0~40ºC  Humidity<85%RH
Power Supply 4x1.5V AAA(UM-4)Battery(Optional AC Power)
Size Main Unit 156x67x28 mm
Probe Φ44x55 mm
Weight 200g(Not Including Batteries)
