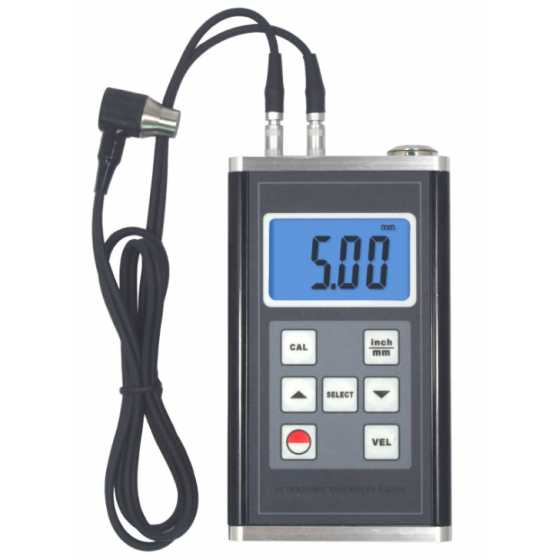

Ultrasonic Thickness Meter

Features
* Using the latest high performance and low power consumption microprocessor technology.
* Bidirectional measurement, for materials within measurement range, thickness is measurable with know velocity, Conversely velocity is measurable with know thickness. * Automatic memory material code and sound velocity value, convenient to use.
* Coupling symbol indication.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Specification:

Housing Material	Aluminum Alloy
Display	Large Screen LCD
Measuring Range	0.75~400mm(45#steel,Depend on Probe)
Resolution	0.1mm/0.1mm/0.001 inch
Accuracy	±(0.5%n+0.05)
Sound Velocity	500~9,990m/s
Lower Limit of Pipes	Φ15x2.0mmΦ20x3.0mm Determined By Transducer
Operating Conditions	Temperature0~40ºC
	Humidity<85%RH
Power Supply	2x1.5V AA(UM-3)Battery
Dimensions	130x76x32 mm
Weight	340g(Not Including Batteries)
