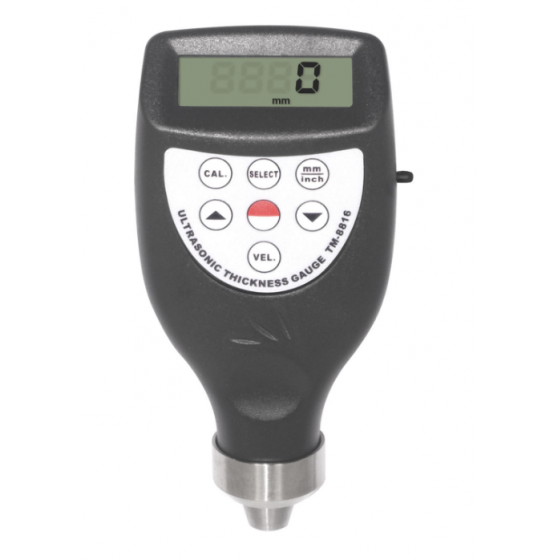

Ultrasonic Thickness Meter

Ultrasonic Thickness Meter

Product Details:

Place of Origin: Made in china
Brand Name: meter2u
Model Number: TM-8816
Certification: ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time: 7-15
Payment Terms: T/T.WU,PAYPAL
Supply Ability: 10000 per month

Large Image:Ultrasonic thickness gaugeUltrasonic Thickness Meter

Detailed Product Description

Features
* Wide Measuring Range and high resolution. With high power emission and broad band receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.
* Applicable to measure the thickness of many materials, e. g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.
* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Specification :

Housing Material

Strong,Light Weight ABS-Plastic

Display

4 Digit,10 mm LCD

Measuring Range

1.0~200mm/0.04~8 inch

Resolution

0.1mm

Accuracy

±(0.5%n+0.05)

Sound Velocity

500~9,990m/s

Lower Limit of Pipes

Φ15x2.0mmΦ20x3.0mm Determined By Transducer

Operating

Temperature0~40ºC

Conditions

Humidity<85%RH

Power Supply

4x1.5V AAA(UM-4)Battery

Dimensions

135x65x27 mm

Weight

120g(Not Including Batteries)
