Product description:
Built-in bubble elimination system (circulation), improve the measurement accuracy and stability.
Good repeatability, and is not affected by flow velocity and pressure in the sample (input).
Communication function (optional) : with RS - 485 communication interface (MODBUS protocol compatible), 4 ~ 20 mA current output corresponding value can be set freely.
4-20 mA output current photoelectric isolation.
Hysteresis set arbitrary function, avoid frequent switch relay action,
Adopting the two-point calibration method,
The watchdog function: make sure the instrument does not crash.
The core components are from famous international brand.
Power-fail protection > 10 years.
|
Model
|
ZS-6850
|
|
Measure range
|
Circulation Type: 0-10, 0-20, 0-100, 0-400 NTU Submerged
Type: 0-500, 0-2000, 0-4000 NTU,
|
|
Accuracy
|
Resolution：0.1%, Accuracy：±1.0%FS，Repetitive：±1.0%
|
|
Medium temperature
|
temperature of 0 ~ 60 OC, relative humidity 90% or less
|
|
Mating electrode
|
Circulation type Sensor installation OR Submerged type
Sensor installation
|
|
Display mode
|

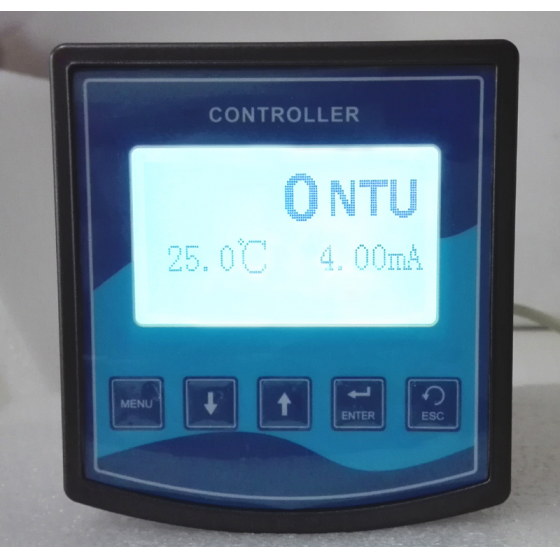

Backlit LCD display, adjustable brightness, 128*64 bit LCD
|
|
Current output
|
photoelectric isolation can migrate 4 ~ 20mA
|
|
Control output
|
Programmable, normally open ,high limit, low limit relay
|
|
Communication output
|
RS485 communication, baud rate: 2400, 4800, 9600, 19200
|
|
Power
|
AC-220V or AC-110V
|
|
Working temperature
|
Environment range: 0～50℃ relative humidity: ≤85%
|
|
Overall size
|
96×96×168mm（H×W×D）
|
|
Hole size
|
92×92mm
|
|
Installation method
|
panel-mounted (embedded)
|
