Laboratory 20L Digital Overhead Stirrer with base and agitator

Product Details:

Place of Origin:	Made in china
Brand Name:	meter2u
Model Number:	OS20-S
Certification:	ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time:	7-15
Payment Terms:	T/T.WU,PAYPAL
Supply Ability:	10000 per month

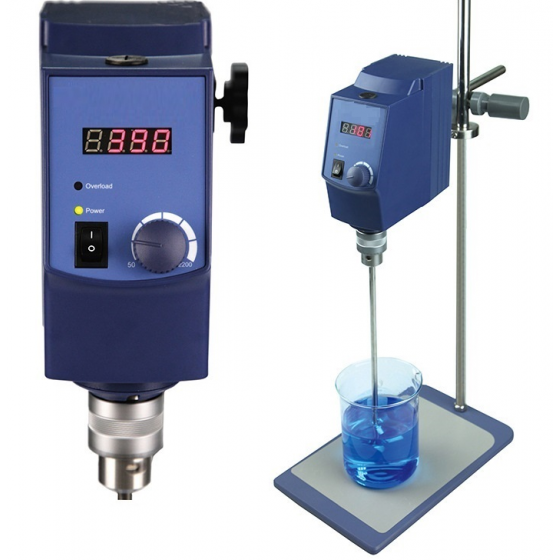

Large Image:StirrerLaboratory 20L Digital Overhead Stirrer with base and agitator

Detailed Product Description

Features:
1. High reliability, long continuous service, outstanding performance.
2. Cover the speed range from 0 to 2200rpm, the speed is accurate and controlled.
3. Brushless DC motor drive, low noise and maintenance free.
4. LED displays for precise monitoring of actuak speed.
5. Overload protection, motor would automatically stop in case of continuous overload.
6. Anti-spill samples, PC control system starts up smoothly, prevent samples overflow .
7. Safety circuits for safe stop function in anti-stall or overload conditions.

Model	OS40-S	OS20-S	OS40-Pro	OS20-Pro
Max. Stirring Capacity	40L	20L	40L	20L
Motor Input	120W	60W	120W	60W
Motor Output	100W	50W	100W	50W
Speed Range	0~2200rpm		50~2200rpm
Speed Display	LED		LCD
Speed Display Accuracy	/		±3rpm
Speed Display Resolution	±1rpm
Max. Torque	600mN.M	400mN.M	600mN.M	400mN.M
Torque Display	/		LCD
Overload Protection	Visual alarm, motor automatic stop
Motor Protection	LED flicker, motor automatic stop
Max. Viscosity	50000mPas	10000mPas	50000mPas	10000mPas
Chuck Diameter Range	0.5-10mm
Protection Type	IP42
Ambient Temp.	5-40℃
Relative Humidity	80%
Interface	/		RS232
Power Consumption	130W	70W	130W	70W
Power Supply	AC110/220V±10%, 50/60Hz
External Size(WDH)	83186220mm
Package Size(WDH)	205335475mm
Gross Weight	5.5kg
