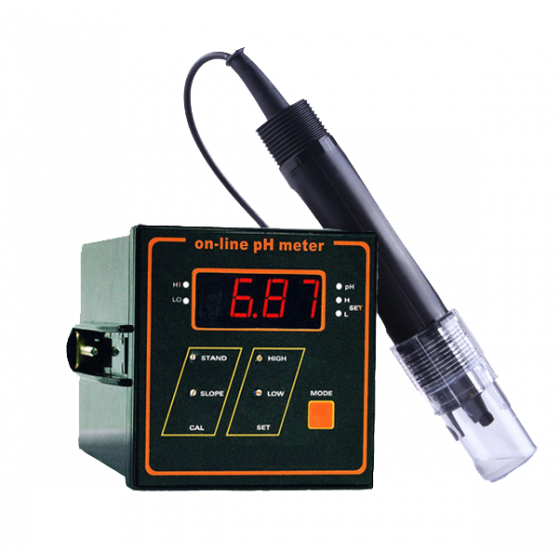

Industrial on-line PH Controller

Product description: Water's pH Controllers are packaged in a 1/4 DIN panel mount controller box with dual SPDT Hi / Lo relays, manual set points and calibration potentiometers set into the front of the pH controller panel. The pHcontrollers feature an isolated 4-20 mA current output. The pH Controllers require a Pt-100 ATC probe or a simulation resistor for temperature compensation.
Main features: Using MCU control, easy to operate simple; panel-mounted structural features, ease of installation, operation and maintenance With isolated output (4 ~ 20) mA DC signal, the output upper and lower limits can be adjusted stepless output With automatic upper and lower limit alarm. Used in chemical, oil refining, metallurgy, pharmaceutical, power plants and environmental protection and other areas of water quality monitoring.

Model	PH-018
Measuring range	0.00~14.00PH
Accuracy	±0.02PH
Resolution	0.01PH
Output current	4-20mA
Automatic temperature    compensation	0~100℃
Warning accuracy	±0.02PH
Environment	Temperature:0~50℃ Humidity<95℅
Display	4-digital LED
Input Impedance	1012Ω
Power Supply	220V±10℅ 50Hz±2℅
Dimensions	96mm×96mm×160mm
Weight	950g
