Fiber optic visual fault locator for Telecommunications, CATV engineering and maintenance

Fiber optic visual fault locator for Telecommunications, CATV engineering and maintenance

Product Details:

Place of Origin: Made in china
Brand Name: HEDAO
Model Number: WT64 / WT65
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time:
Payment Terms:
Supply Ability:

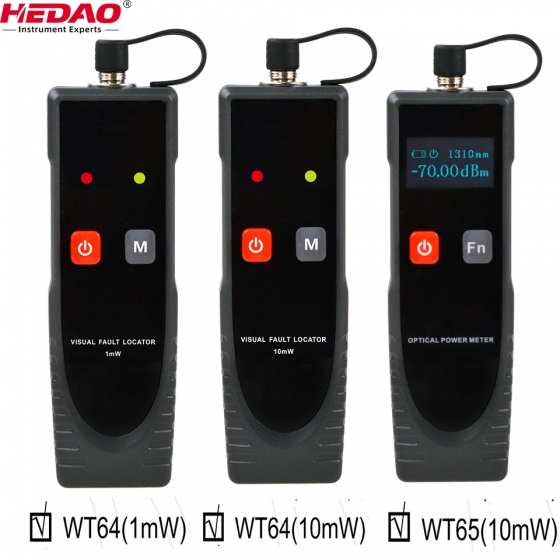

Large Image:visual fault locatorFiber optic visual fault locator for Telecommunications, CATV engineering and maintenance

Detailed Product Description

Fiber optic visual fault locator for Telecommunications,
CATV engineering and maintenance

Small red light pen is designed for maintenance of optical fiber and optical cable line, mainly
applied inoptical fiber breakpoint detection, optical fiber fault detection and optical fiber fault location
and detection, which is widely used by Telecom, CNC, CTT, Unicom, China Mobile and
network cabling engineering.

Function(WT64)
Long  detection  length
Stable  output  power
Low  voltage  alarm
Strong  light  source
Small size, light weight, small power consumption
Universal optical interface design (support FC/SC/ST)
Specification(WT64)
  1mW 10mW
Output power 1mW 10mW
Output wavelength 650nm±10nm
Optical fiber connector Universal 2.5mm connector
Flash frequency 1Hz
Working temperature 0°℃~40℃
Working humidity 5%~80% RH
Storage temperature -10°℃~60℃
Battery type 1.5V AAA*2
Product size 34x114x17.5mm


Function(WT65)
◆ Battery volume display
◆ Auto power off (optional)
◆ Universal optic interface   design
◆ Light, mini size and low power consumption
◆ Reading unit switching between   absolute   power   and   relative   power
◆ 6 optic wave length for selection —850nm/1300nm/1310nm/1490nm/1550nm/1625nm
Specification(WT65)
Measuring range -70dBm~+6dBm
Wave Length 850nm,1300nm,1310nm
1490nm,1550nm,1625nm
Resolution 0.05
Accuracy 2-48dBm,±2dBm
≤-48dBm,±3.5dBm
Operation environment 2-48dBm Temperature:0~40℃(32°F~104°F) Humidity:5~95%
Operation environment≤-48dBm Temperature:0~32℃(32°F~89.6°F) Humidity:5~80%
Storage environment Temperature:0~40℃(32°F~104°F) Humidity:5~95%
Auto power off time 10 minutes
Dimension 34x114x17.5MM
Power 1.5V  AAA*2
Weight 59.22g Including Battery
