Data logger

Data logger

Product Details:

Place of Origin: Made in china
Brand Name: HEDAO
Model Number: RC-5+
Certification: ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time:
Payment Terms:
Supply Ability:

Large Image:Data LoggerData logger

Detailed Product Description

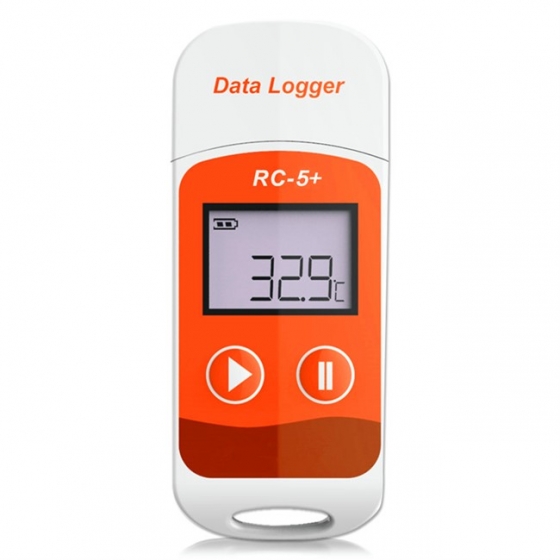

RC-5+ PDF Temperature Data Logger Digital Recorder 32000 Points RC-5+ Recorder



Application:

The data logger is mainly used to monitor the temperature of food,medicine, chemicals and other products in storage and transport.It can be widely applied to all links of warehousing and cold-chain logistics,such as refrigerated containers,refrigerated trucks, cooler boxes, cold storage,laboratories,etc.



Precautions:

*Please read the manual carefully before using the logger.

*To synchronize system time, it is recommended to connect the logger to a computer for parameter configuration before it is used for the first time.

*The LCD screen will be off after 15 seconds of inactivity.Press the left key to lighten it.

*Never dismantle the battery.Do not remove it if the logger is running.

*Replace the battery in time for long distance transport if its power remains half.

*Replace old battery with a new CR2032 button cell with the negative inward.



Specifications:

Temperature range -30 ° C ~ 70 ° C
Temperature accuracy ±0.5(-20℃/+40℃);±1.0(other range)
Temperature Resolution 0.1° C
Date Storage Capacity 32000 readings
Shelf Life/Battery 1 years/CR2032 button cell (no included)
Recording Interval 2 minutes (standard)
Protection Class IP67
Dimensions 80*25*12mm
Weight 35g
Connection Interface USB 2.0,A-Type





How to use:

1.Connect the data logger to a computer to set configuration parameters.

2.Press and hold the left key for 5 seconds to start recording.

3.Quickly click the right key twice to mark the current time and temperature.

4.Press and hold the right key 5 seconds to stop recording.
