Color screen Industrial infrared thermometer (650℃ or 850℃ or 1050℃)

Product Details:

Place of Origin:	Made in china
Brand Name:	HEDAO
Model Number:	WT323A WT323B WT323C WT323D WT323E
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time:
Payment Terms:
Supply Ability:

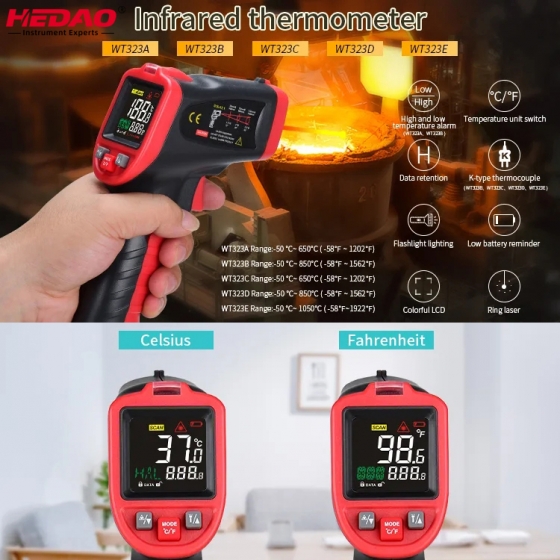

Large Image:Industrial IR thermometerColor screen Industrial infrared thermometer (650℃ or 850℃ or 1050℃)

Detailed Product Description

Color Screen LCD Display Infrared Thermometer Non-Contact For Various Hot Hazardous & Hard-Toreach Object

This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display.
The Optics collected the infrared energy emitted by object and focus onto the Sensor.
Then the sensor translates the energy into an electricity signal.
This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.

Specification for different models:

	WT323A	WT323B	WT323C	WT323D	WT323E
LCD	Colorful LCD	Colorful LCD	Colorful LCD	Colorful LCD	Colorful LCD
range	-50~650°℃ (- 58~1202°F)	-50~850℃ (-58~1562°F)	-50~650°℃(- 58~1202°F)	-50~850°℃ (- 58~1562°F)	-50~1050℃ (58~1922°F)
Temperature display accuracy	0.1℃	0.1℃	0.1℃	0.1℃	0.1℃
Temperature measurement error	-50~0℃(-58~32°F); ±3℃(±5°F) 0~650°℃ (32~1202°F): ±1.5% rdg or ±1.5(±2.7 F) Take the bigger value	-50~0°℃(-58~ 32°F): ±3°℃(± 5°F) 0~850℃(32~1562°F): ±1.5% rdg or±1.5℃(±2.7°F) Take the bigger value	-50~0℃(-58~32°F): ±3℃(± 5°F) 0~650°℃ (32~1202°F): ±1.5%rdg or ±1.5°℃(±2.7 F) Take the bigger value	-50~0°℃(-58~ 32°F): ±3℃(土5°F) 0~850℃(32~1562°F): ±1.5%rdg or ±1.5℃ (±2.7°F) Take the bigger value	50~0℃(58~32°F): ±3(± 5°F) 0~1050℃(32~1922°F): ±1.5%rdg or ±1.5℃ (±2.7°F) Take the bigger value
Repeatability	1%rdg or 1℃ Take the bigger value	1%rdg or 1℃ Take the bigger value	1%rdg or 1℃ Take the bigger value	1%rdg or 1℃ Take the bigger value	1%rdg or l℃ Take the bigger value
Reponse time	0.5s,95% Response	0.5s,95% Response	0.5s,95% Response	0.5s,95% Response	0.5s,95% Response
Emissivity	0.10~1.00 Adjustable (preset as 0.95)	0.10~1.00 Adjustable (preset as 0.95)	0.10~1.00 Adjustable (preset as 0.95)	0.10~1.00 Adjustable (preset as 0.95)	0.10~1.00 Adjustable (preset as 0.95)
D:S	12:1	12:1	12:1	12:1	16:1
Batteries	1.5V AAA battery*2 (No.7 battery)	1.5V AAA battery*2 (No.7 battery)	1.5V AAAbattery*2 (No.7 battery)	1.5V AAAbattery*2 (No.7 battery)	1.5VAAA battery*2 (No.7 battery)
Weight/dimensions	202g(including batteries)/ 108 49177 mm	202g(including batteries)/ 108 49177 mm	202g(including batteries)/ 108 49177 mm	l202g(including batteries)/ 10849177 mm	202g(including batteries)/ 10849177 mm
K-type thermocouple
range	×	0℃~250℃ (300℃ for short time)	0 ℃~250℃ (300℃ for short time)	0 ℃~250℃ (300℃ for short time)	0 ℃~250℃ (300℃for short time)
Measurement error	×	+2.5°Cor 0.75%rdg Take the bigger value	+2.5°Cor 0.75%rdg Take the bigger value	+2.5°Cor 0.75%rdg Take the bigger value	±2.5°℃or 0.75%rdg Take the bigger value
Thermal response time	×	<10s	<10s	<10s	<10s
