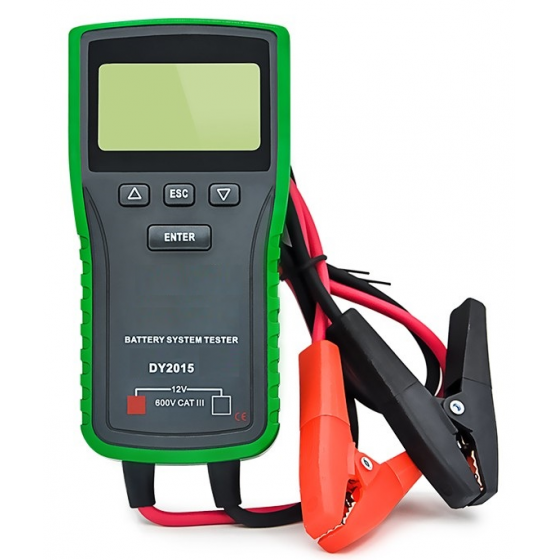

Battery system tester

Features
Detection of battery state of health + battery charge status + battery open circuit voltage + Found starting capability, using the world\'s most advanced conductance testing technology, the testing process no heat, no discharge, no spark, no operating dangerous, anyone can operate. It can be directly detected in the car without removing the battery, rapid and accurate display of the battery test results.
Intelligent Test Function:
1. Battery Test: Cold start current, battery internaresistance, voltage, life analysis.
2. Start the test: during system startup battery changes.
3. Charging System Test: the charging system work output.
4. Load test: battery load status
Use: genera12V lead-acid batteries
Load test current ≤60A
Detection Battery capacity range: 5-80Ah
Voltage accuracy: ± 1% + 2d
The maximum voltage value: DCV19.9V
Battery capacity mode: 5/10/20/30/40/50/60/70 / 80Ah
Self-diagnostic function: displays the error "Err"
Relative Ambient temperature: 0-55C
Relative humidity: ≤80%
Production of leather Size: 155 80 45
Product Weight: about 450g
