Vibration Tachometer

Product Details:

Place of Origin:	Made in china
Brand Name:	HEDAO
Model Number:	VM-6370T
Certification:	ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time:	7-15
Payment Terms:	T/T.WU,PAYPAL
Supply Ability:	10000 per month

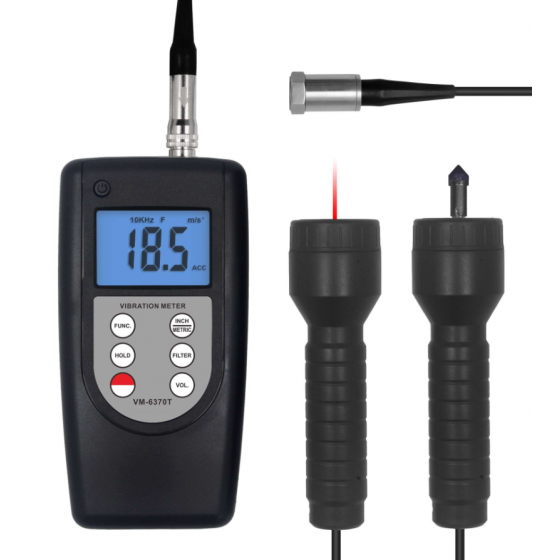

Large Image:Vibration MeterVibration Tachometer

Detailed Product Description

Features
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Multifunctional, one instrument combines Photo Tachometer & Contact Tachometer. Be able to measure rotation rate RPM(r/min) & Frequency Hz.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.
Specification:

Sensor	Piezoelectric Transducers
Measuring Range	Acceleration	0.1~400m/s² 0.3~1312ft/s² 0.0~40g Equivalent Peak
	Velocity	0.01~400mm/s 0.004~16.0inch/sTrue RMS
	Displacement	0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak
Frequency Range	Acceleration	10Hz~10kHz
	Velocity	10Hz~1kHz
	Displacement	10Hz~1kHz
Rotation Rate Range	60~99,990RPM(r/min) (Reading should be multiplied by 10 if the display shows ‘10’)
Frequency Range	1~20,000Hz (Reading should be multiplied by 10 if the display shows ‘10’)
Accuracy	5% of Reading+2 digits
Operating Conditions	Temperature 0~50ºC Humidity<90%RH
Power Supply	4x1.5V AAA(UM-4)Battery
Dimensions	140x72x34mm
Weight	380g(Not Including Batteries)
